10-30m³ Aircraft Refueling Tank Truck



Aircraft refueling tank truck

XUZHOU DESHENG PETROL MACHINE CO.,LTD(DESEINOR)offers a complete line of aircraft refueling truck for airline and business aircraft operations. We also produce custom-built refueling trucks for customers having unique preferences for cab & chassis, tank capacity, and fueling system options. Our engineers are ready to design world class equipment exactly as you want it.All of our refueling trucks products and trucks, whether standard models or custom-built, comply with all latest edition industry guidelines.

一、DESEINOR Aircraft refueling Trucks - Main features

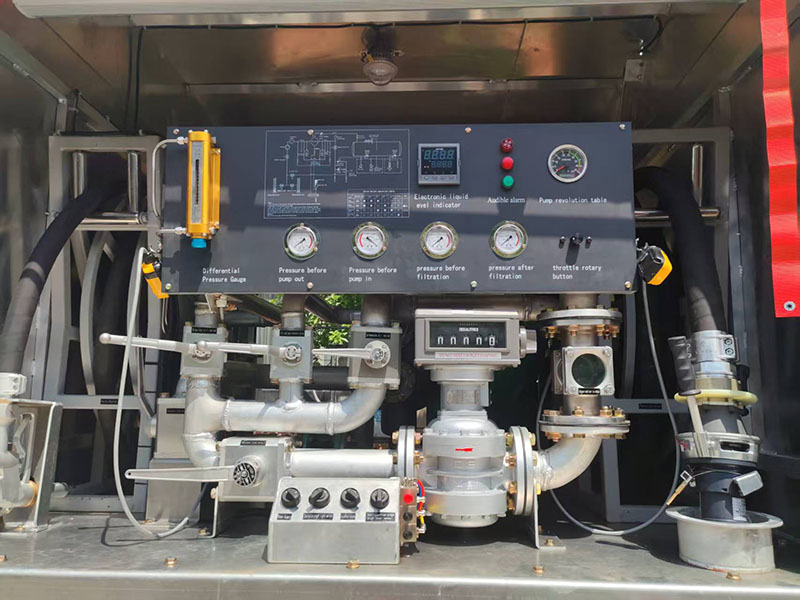

1. High refueling pressure stability is required. For this purpose, a pressure regulator, a voltage stabilizer and a pressure refueling gauge are installed on the refueling pipeline.

2. The cleanliness of the oil is high. A high-performance filter separator should be used on the oil line. Thetankand pipeline must be made of aluminum alloy or stainless steel.

3. Absolutely guarantee the safety of refueling. Anti-static devices, interlocking control systems, electricalexplosion-proof devices, fire extinguishers, etc. should be installed.

4. Equipped with high-precision, large-flow metering devices.二、DESEINOR Aircraft refueling Trucks - Designrequirements1. As an on-site vehicle, it is not subject to restrictions from relevant standards andregulations for road vehicles, and there are no standard limit requirements for constant speed fuel consumption, acceleration performance, taxiing performance, etc. It mainly meets the airport ground equipment standards and the special requirements of airport customers.

2. As it involves aviation kerosene, low speed (generally less than 45km/h), explosion and fire prevention, leakage prevention, and safe operation are the basic operating conditions of aircraft refueling vehicles.

Effective measures are taken to isolate the heat-generating components such as the engine and exhaust pipe from the oil pipeline;

A grounding wire is set in the pipeline system; a static conductive mopping tape is set at the rear of the vehicle;

All refueling pipelines are designed with stainless steel pipes;

Each operating switch is equipped with obvious signboards;

Interlocking protection, emergency protection and other functions are set.

3. Meet customers' personalized requirements for vehicles. For example, the upper body and chassis can be completely independent to facilitate maintenance; small accessories such as static reels and wheel chocks can be installed according to customers' customary positions.

三、Aircraft Refueling Truck Product Paramenters

Item

Description

Drive Wheel

4X4 4X2 6X2 6X6 6X4 8X4

Gross Vehicle Weight

≤5T 5-10T 15-20T 25-30T

After-sales Service Provided

Video technical support, Online support

Storage

Diesel

Horsepower

< 150hp

Place of Origin

China

Province

Jiangsu

Capacity (Load)

1-10T

Engine Capacity

4 - 6L

Forward Shift Number

5

Maximum Torque(Nm)

≤500Nm

Chassis brand

Isuzu DongFeng /Shacman/ sinotruk howo

Transmission Type

Manual

Fuel Type

DIESEL

Tank capacity

10m³-30m³

Emission standard

Euro 2/3/4/5/6

Refueling pump

aluminum alloy oil pump

Refuel flow rate

100L-150L/min

Pipeline pumping flow

700L/min

Work pressure

0.25 Mpa

四、The following matters should be noted during the operation of the aircraft refueling vehicle:

Comprehensive inspection and maintenance: Before using the aircraft refueling truck, it needs to be thoroughly inspected and maintained. Check the vehicle's mechanical parts, fuel tanks, pipes and pumps for integrity. Make sure all connection points are firm and reliable, and check the vehicle for any unusual noises or oil leaks. Any problems found should be reported and repaired promptly.

 Stay alert and concentrate: Operators need to stay alert and concentrate when using aircraft refueling trucks. Operators should focus on refueling operations and avoid being distracted or disturbed by other things. In particular, operators should pay close attention to the flow and pressure indicators during the refueling process to ensure the accuracy and safety of refueling.

Comply with load limits: Operators need to strictly comply with the load limits of the tanker. During operation, do not exceed the maximum load capacity of the tanker. The maximum load capacity of different models of tankers is different. Exceeding the maximum load limit will cause damage to the mechanical parts of the tanker, which may cause an accident.

 Maintain good communication and cooperation: When using the aircraft refueling truck, the operator should always maintain good communication and cooperation. Communication with other staff should be clear to ensure the coordination and smooth progress of the refueling operation. The cooperation between the refueling personnel and the driver is also very important. Pay close attention to the work arrangements and instructions to ensure that the refueling truck can be parked accurately in the designated location.


Safety first: When using an aircraft refueling truck, operators must always keep safety in mind. Safety must not be neglected under any circumstances, and must be operated strictly in accordance with operating procedures to prevent any accidents. If any hidden dangers or abnormal conditions are found, the operator should immediately stop the refueling operation and report it to the superior leader.


Choose a safe site: When refueling or draining oil, you need to choose a safe site away from fire and static electricity. Make sure there are no flammable substances in the surrounding environment to avoid fire or explosion caused by fuel leakage or lightning.


 Comply with operating specifications: refueling and draining operations must be carried out strictly in accordance with specifications to avoid any operating errors or violations.


Check the quality of the oil: When refueling, you need to check the quality of the oil to ensure that the correct oil is added to avoid malfunctions caused by adding the wrong oil.


Control the oil amount: When draining the oil, you need to control the oil amount to avoid too much or too little, and at the same time, you need to comply with the oil draining standards and specifications.


Ensure personnel safety: During the refueling and defueling process, personnel safety must be ensured. Refueling and defueling personnel need to wear personal protective equipment and pay attention to personal safety to avoid accidental injuries during the operation.
