68000L Mobile Fuel Station
This product uses two islands, 2 refueling machines, and 4 refueling guns. CPUopen protocol, you can contact the IC card management system.
Product Overview
This skid-mounted fuel station is configured with two fuel dispensing islands, two fuel dispensers and four fuel nozzles.
It adopts an open CPU communication protocol, supporting docking with IC card management systems.
A built-in dual-position water tank is fitted with valve control, enabling flexible switching between single-tank and dual-tank working modes.
The effective usable tank capacity is 68,000 L.
It features dual storage compartments and dual oil pumps with a maximum flow rate of 35 m³/h. Standard configurations include liquid level monitoring system, high-liquid-level alert, overflow protection alarm and integrated fire suppression system.
Two manhole covers are installed on the tank top, matched with an all-weather automatic pressure relief device set to 24 kPa relief pressure.
High-temperature resistant cables rated for 70°C working temperature are used throughout the equipment.
Technical Parameters
| External maximum dimensions (Excluding the height of the guardrail) | Length | 12192mm |
| Width | 2438mm | |
| Height | 2100mm | |
| Rated capacity | 40m³ | |
| Unladen weight | 16700kg | |
| Temperature | -40°C~60°C | |
| Manhole diameter | 580mm | |
| Emergency pressure relief value | 21-35kPa | |
| Breathing valve | DN50 -295Pa~2000Pa | |
| Barrier explosion-proof materials | Type IV | |
| Paint | Epoxy zinc-rich primer + epoxy cloud iron intermediate paint + polyurethane topcoat | |
| Operating voltage | Three-phase five-wire 380V | |
| Maximum power consumption per unit when loaded | 14Kw | |
Product Features
We boast 20 years of professional manufacturing experience in skid-mounted fueling stations, with all products fully customizable to match clients’ unique demands.
Our sales team will conduct in-depth communication with you covering fuel station demands, site terrain and actual application scenarios. Our senior design engineers will then tailor exclusive mobile fuel station solutions for your project.
We have delivered R&D and customized design services for massive global clients and enterprise groups. IoT connection, IC card management and other smart control functions can be integrated as per your operational needs. Kindly share your detailed requirements, and we will provide one-stop customized solutions for you.
📦 Product Introduction

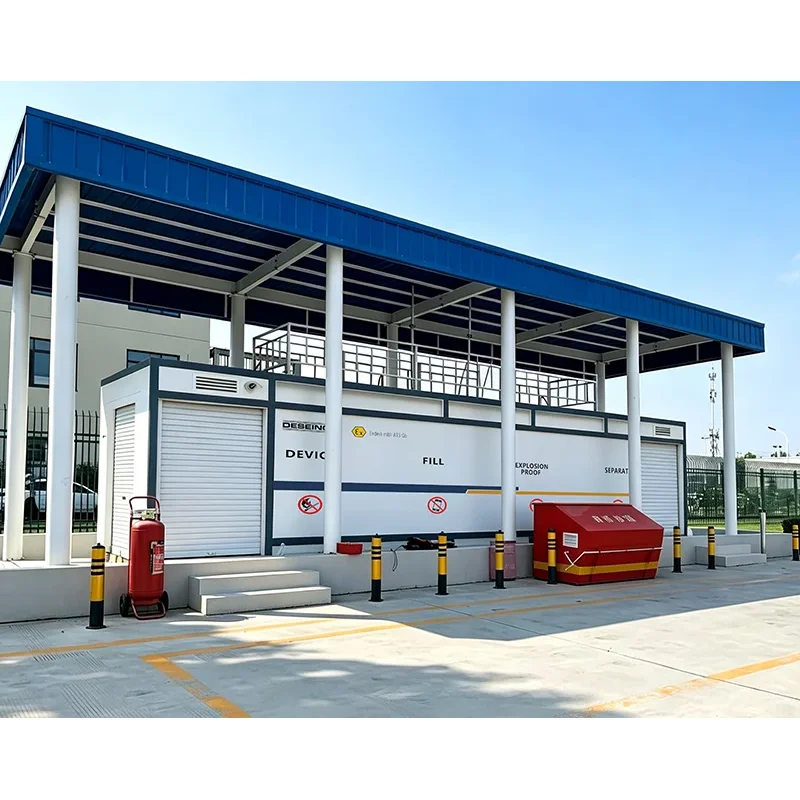

DESEINOR barrier explosion-proof skid-mounted fueling station integrates storage tank, fuel dispenser, vapor recovery device, automatic fire suppression and complete explosion-proof system. It passes national explosion-proof certification, with customizable tank capacity ranging from 5000L to 75000L. Standard-flow and high-flow refueling modes are both available. Featuring plug-and-play installation and simple operation, it is widely applied to internal fuel supply of factories, logistics parks, mines, construction sites and ports.
✨ Product Highlights
✅ Multi-Layer Explosion-Proof Safety Protection Filled with aluminum alloy explosion-proof medium inside the tank and adopting barrier explosion-proof tech, explosion-proof grade Exdeia mbII AT3 Gb. It owns UL & CE certificates and complies with GB/T27924‑2011. Equipped with automatic dry powder fire suppression, leak-proof, overflow-proof, anti-static and lightning-proof structures, it eliminates explosion hazards caused by open fire, collision or lightning strike.
✅ Multi-Nozzle Independent Control, Anti-Misfueling Design Independent display screens real-time monitor pressure, liquid level, fuel quantity, unit price and total cost. Separate start-stop buttons and emergency stop protection; single nozzle fault will not shut down the whole equipment. Color-coded red/green/orange nozzles identify gasoline, diesel and special fuels; separate tank compartments support mixed oil storage.
✅ Eco-Friendly High-Efficiency Vapor Recovery System Top-mounted vapor recovery unit paired with explosion-proof breathing valve reduces over 90% fuel vapor emission to meet environmental standards. Sealed leak-proof base avoids oil pollution. Optional 120L/min high-flow nozzles support rapid fleet refueling.
✅ Integrated Skid Structure, Easy Installation & Transfer Fully pre-assembled in factory. Only hardened ground and power supply are needed on site without complex civil construction. The whole skid can be lifted and relocated for repeated use on mines and construction sites. Modular design ensures easy maintenance and stable 24h unattended operation.
✅ Diversified Intelligent Customization Customizable tank volume, flow rate and nozzle quantity. Optional IC card payment, license plate recognition, remote monitoring, self-service refueling and liquid level detection. Carbon steel/stainless steel tank optional; solar power & foam fire suppression systems available.
🛠️ Manufacturer One-Stop Services
🔹 Free customized solution design based on site condition, fuel consumption and oil types 🔹 Full compliance technical guidance for filing, inspection and equipment commissioning 🔹 Complete after-sales service: 2-year whole machine warranty, lifelong maintenance, on-site installation, debugging and staff training 🔹 Fast supply of original spare parts: fuel nozzles, flow meters, explosion-proof components
DESEINOR explosion-proof skid-mounted fueling station focuses on safety and personalized customization, supplying compliant, high-efficiency internal refueling solutions for global enterprises.
